Measuring For Shutters

Measuring for your new shutters is simpler than it appears. By adhering to our straightforward tips, carefully double-checking your work, and allocating sufficient time, you can complete the task with ease. Below is a convenient guide for measuring shutters.

Before You Begin, Check for Squareness

Measuring for Shutter blinds instructions

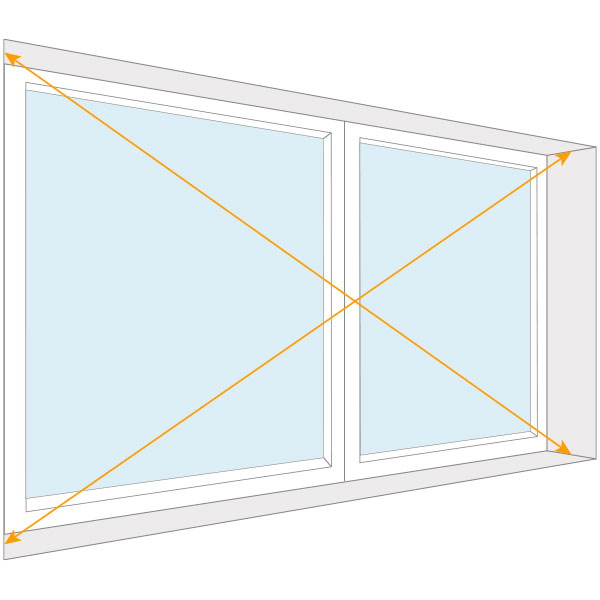

Firstly, ensure that your recess is sufficiently square to accommodate our shutters. To do this, measure the recess diagonally from one corner to the opposite corner on both sides, and then compare the two measurements.

If the difference is 12mm or less, the recess is suitable.

However, if the measurements differ by more than 12mm, it will not be possible to fit shutters in the recess. In such cases, there are numerous other options available, such as blinds and curtains, which can be explored across our sites.

Ready To Measure?

Begin by determining the position of your shutters, either at the front of the recess or within it. Measure precisely at the location where you intend to install the shutters. There is no need to make any adjustments, as all calculations will be handled for you.

Front Of Recess Fitting

Measuring for Shutter blinds instructions

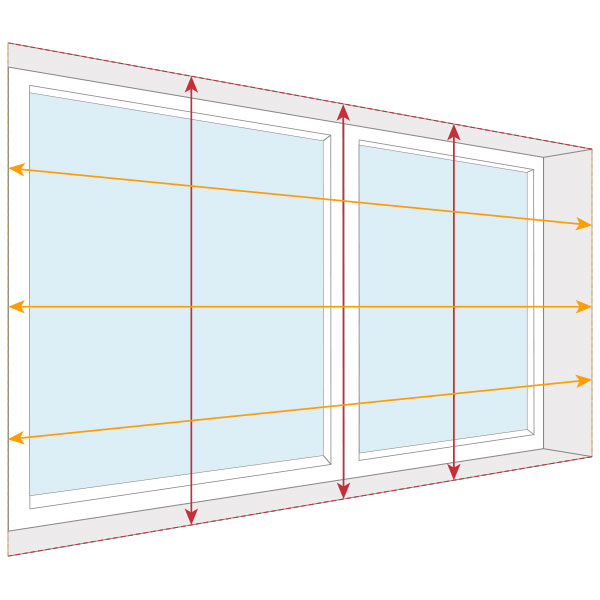

For a front of recess fitting you need to measure at the front of
the recess. Measure the width at the top, middle and bottom.
Next measure the drop on the right, in the centre and on the
left. Write down the smallest measurements, these are the sizes
you will use to place an order.

If your window includes a window sill, select the 'Front of Recess With Sill' fitting. The measurement process for this remains exactly the same.

Inside Recess Fitting

Measuring for Shutter blinds instructions

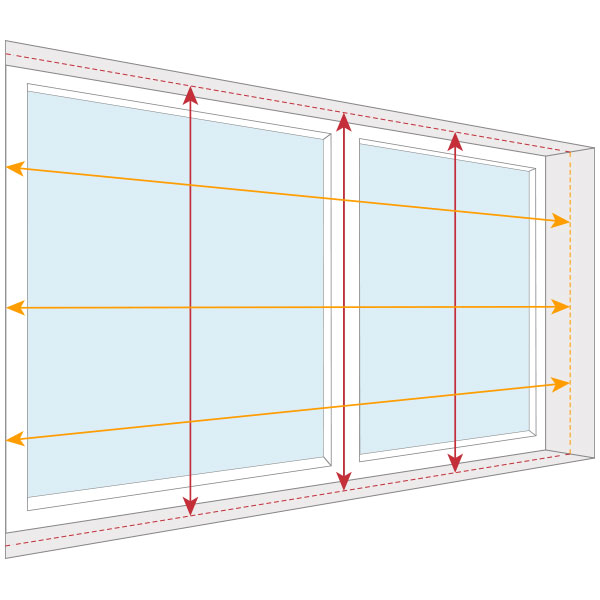

For an inside recess fitting, shutters may be installed at any position within the recess, including flush with the window. It is essential to take measurements sufficiently forward to prevent interference from obstructions like window handles.

Identify and mark the desired fitting location, then measure the width and drop at three different points, as is done for a front-of-recess fitting. Always use the smallest measurements recorded.

Measuring For A Midrail

For shutters exceeding a 1400mm drop, a stylish midrail is incorporated to provide additional support. An advantage of the midrail is its customizable height, allowing it to be positioned for optimal appearance. Typically, midrails are aligned with the height of any transom bars on the window for a cohesive look.

Measuring for Shutter blinds instructions

When customizing your midrail, there are a few minor restrictions to consider. For structural integrity.

It must be positioned at least 380mm and no more than 1300mm from both the top and bottom of your shutter panel.

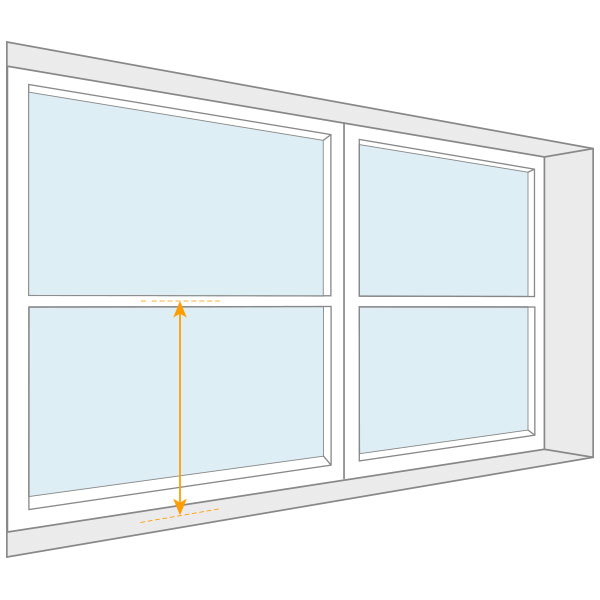

To determine the placement of your midrail, measure from the bottom of your recess to the midpoint of the desired position. If this aligns with your transom bar, measure from the bottom of the recess to the center of the bar.

F YOU ARE UNSURE PLEASE CONTACT OUR CUSTOMER SERVICES FOR FURTHER ADVICE.

Tip: Do not forget to check for obstructions such as window handles, windows opening inwards, or perhaps wardrobe door opening towards window etc as these can prevent the blinds from either opening/closing or being able to be fitted in the first place.

Virtual Measure Appointment

Would you like some help with the measuring etc? Please fill out the form below and click send and we will contact you to arrange an appointment for a free virtual measure using zoom, facetime or whats app video call and we will help you to measure the correct areas and discuss your options and any compatibility issues.

Measuring For Curtains

Measuring for your curtains is easy no need for deductions or calculations we’ll do all of that for you to make sure everything hangs perfectly. Follow our simple guide below for your type of track or pole and let us do the rest.

Eyelet, Pencil Pleat & Pinch Pleat Curtains

Measuring the correct curtain width

Measure the curtain track or pole width, not the window width. It’s important that this is the measurement provided, as we’ll use your track or pole width to calculate the required amount of fabric for your curtains.

For the most part, you will be unable to adjust the width of the curtains once they are made, so it’s important that the width measurement is as accurate as possible. If fitting a new track or pole, this should extend 15cm to 20cm either side of the window and at least 15cm above.

Curtain poles

For a curtain pole simply measure the width of the pole between any finials or end caps, that is the width you should enter.

Curtain tracks

For a standard curtain track simply measure the full width of the track, that is the width you should enter.

Curtain tracks with overlap

If your track has an overlap in the centre, measure the full width of the track (a) and the width of the overlap (b). Add the two together and that is the width you should enter.

Measuring the correct curtain drop​

Curtains can be hung either to the floor, to the sill or to below the sill. We suggest that curtains finish either;

  • 1.5cm above the floor
  • 15-20cm below the sill (or 2 – 3cm above the radiator)
  • 1.5 cm above the sill

It’s important to allow a small amount of space at the bottom of the curtains; If they drag at the bottom then they could mark or fray.

Pencil & Pinch pleat pole heading

When using a curtain pole, measure from the underside of the decorative ring to where you want the curtain to finish at the bottom.

Alternatively, if you’d like the pole and decorative rings to be covered by the curtains, simply start your measurement from the top of the decorative rings instead.

Pencil & Pinch pleat track heading

When using a curtain track, measure from the top of the track to where the curtain is to finish at the bottom.

Our eyelet heading curtains will fit poles up to 30mm in diameter. Simply measure from the top of the pole to where you want the curtain to finish at the bottom. We will make the curtain with 3cm of fabric above the top underside of the eyelet where it sits on the pole.

We add this automatically so simply measure from the top of your curtain pole.

Eyelet heading

When using a curtain track, measure from the top of the track to where the curtain is to finish at the bottom.

Our eyelet heading curtains will fit poles up to 30mm in diameter. Simply measure from the top of the pole to where you want the curtain to finish at the bottom. We will make the curtain with 3cm of fabric above the top underside of the eyelet where it sits on the pole.

We add this automatically so simply measure from the top of your curtain pole.

IF YOU ARE UNSURE PLEASE CONTACT OUR CUSTOMER SERVICES FOR FURTHER ADVICE.

Tip: Do not forget to check for obstructions such as window handles, windows opening inwards, or perhaps wardrobe door opening towards window etc as these can prevent the blinds from either opening/closing or being able to be fitted in the first place.
